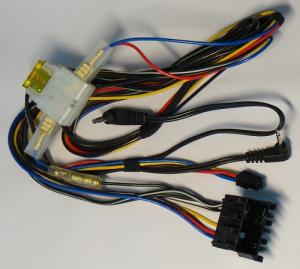

Autoleads 06-109 Mic Fused 4

Saab Direct Input Telemute Lead

Autoleads 06-109 Mic Fused 4
Saab Direct Input Telemute Lead

This lead will also allow use of the
Vehicle Microphone (if installed)

Telemute leads are used when installing an aftermarket hands free kit. The telemute lead will mute your head unit and redirect all calls through the vehicles speakers and will take its power from the exising vehicle wiring.

Suitable for:

Saab 9-3 2000 > (Not without VDA)
Saab 9-5 2000 > (Not without VDA)

Please note that the 4 way plug and speaker connections supplied are designed to fit a Bury Hands Free kit. If you are fitting this lead to a Non-Bury kit, then you may require an additional adaptor.

Saab 9-3 Model:

1) Remove the glove box and console side panel.
2) Cut off the cable tie securing the Black 18 pin connector.
3) Connect the Autoleads adaptor and secure with another cable tie.
4) The 4 way plug and speaker connector plugs into the Bury Hands Free kit.

Saab 9-5 Model >2003:

1) Remove the head unit as per manufacturers instructions.
2) Remove the Aircon or heater panel.
3) The 18 way plug can be found on the fan cowling wrapped in anti-rattle tape along with the antenna connection.
4) Connect the Autoleads adaptor and wrap with the anti-rattle tape.
5) The 4 way plug and speaker connector plugs into the Bury Hands Free kit.

Saab 9-5 Model 2003>:

1) Remove the head unit as per manufacturers instructions.
2) Remove the Aircon or heater panel.
3) The 18 way plug can be found behind the air conditioning panel tucked to the lower left side, the antenna can be found to the lower right.
4) Connect the Autoleads adaptor and wrap with the anti-rattle tape.
5) The 4 way Molex plug and speaker connector plugs into the Bury Hands Free kit.
