VW Radio Navigation System MFD

7 612 001 021 / 3B0 035 191 D

Radio Code & Decoding Service

VW Radio Navigation System MFD
3B0 035 191 D
Blaupunkt 7 612 001 021

As originally fitted to the :

Volkswagen
Golf
Sharan 1996 > 2001

Please note that code entry is only possible with the ignition switched on, and in the order shown. If the display continually shows "SAFE" then the unit may be codelocked and will need to be left switched on up for up to two hours to reset before another code entry attempt is possible. If it does not reset after this time, then all of your code entry attempts may have been used up, and the unit will need to be sent to us to be decoded and reset.

If you have lost your radio code, we can decode and reset this radio, but you will need to send the unit to our workshop for this work to be carried out. Approx turnaround time is 48 hours from receipt to dispatch.

Removal of the radio is fairly straightforward. The removal tools (2 sets required) are inserted into the four flat horizontal slots at the top and bottom edges of the fascia until a click is felt. The radio can then be withdrawn and the leads unplugged.

Error Message: SAFE PIN NOT CONNECTED:

We get a number of phone calls from people who have retro fitted these to other vehicles and have an error message of SAFE PIN NOT CONNECTED after the Code has been entered. This is usually an installation fault and in virtually all cases it is because the SAFE PIN has not actually been connected. Please consult your installation guide for further information and ensure that the unit is installed correctly.

Code Entry as Follows:

Switch ON the Ignition (No need to start car)

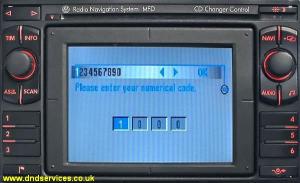

Switch Radio On - Display Shows
" Please Enter Your Numerical Code "
Rotate RH Tuning Knob to Select 1st Digit
Press RH Tuning Knob to Enter
Rotate RH Tuning Knob to Select 2nd Digit
Press RH Tuning Knob to Enter
Rotate RH Tuning Knob to Select 3rd Digit
Press RH Tuning Knob to Enter
Rotate RH Tuning Knob to Select 4th Digit
Press RH Tuning Knob to Enter
If the correct code number is now shown
Press " OK " To Enter
